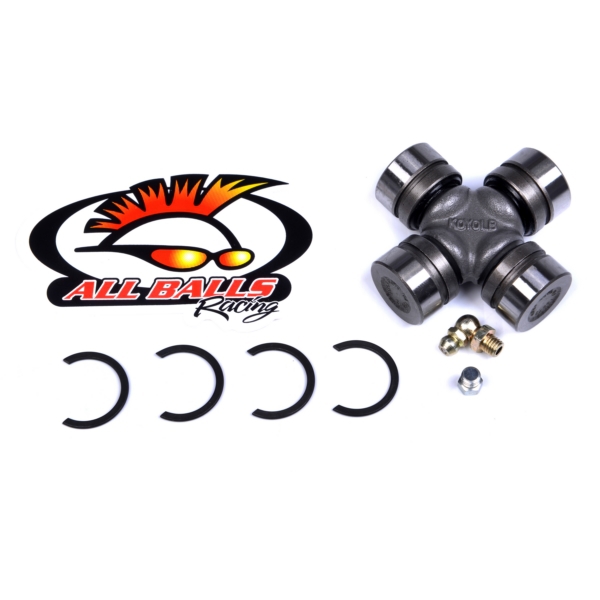

All Balls Universal Joint

Original price was: $50.99.Current price is: $48.36.

5% Off
All Balls Universal Joint
All Balls Universal Joint - Image 2

All Balls Universal Joint

UNIVERSAL JOINT ATV SUZ ALLBALLS

Original price was: $50.99.Current price is: $48.36.

10 in stock


This product is available at $45.94 for first purchase, please register/login here

SKU: 207356 Categories: , ,
  • U Joints are cold forged from SCM-415 steel, precision ground journals are case hardened to HRC58-61
  • U Joints are pre greased with hi-temp Lithium Complex 3 grease.
  • Bearing cups feature a Quad lip seal to keep contamination out and grease in.
  • Centrally located grease zerk and grease channels in bearing cup evenly distribute grease.
  • Kits include cap plug to eliminate grease zerk for low clearance applications.
  • Honda Yoke assemblies have upgraded cross diameters from 17mm to 19mm.
  • Honda yoke assemblies feature stainless steel clamps and hi quality neoprene rubber boots for long life and abrasion resistance.

Notes for utility Models:

  • A) Six Wheel vehicules middle drive shaft use the same U-Joints as rear drive Shaft (Location 4 & 5)
  • B) Middle axle use the same U-Joints as rear axle (Location 6 & 7)
  • C) Utility vehicules with middle U-Joints on front drive shaft use same U-Joints as front (Location 2)

    • In order to know the exact position of every joint made for your ATV model, refer to the charter in Kimpex ATV & UTV online catalog at the Axles & Universal CV Boots section.

    Additional information

    Weight0.7499 lbs
    Dimensions4.5000 × 4.5000 × 1.5000 in
    Brand

    Tip length

    0.984"

    Total length

    1.717"

    Zerk

    Yes

    Snap ring included

    Yes

    Position

    Varies by model

    Model number

    19-1001

    Reviews

    There are no reviews yet.

    Be the first to review “All Balls Universal Joint”
    Make Model Year
    KAWASAKI Teryx 750 2009 - 2013
    KAWASAKI Teryx 750 4x4 2008 - 2010
    KAWASAKI Teryx 750 4x4 LE 2008 - 2010
    KAWASAKI Teryx 750 LE 2011 - 2012
    KAWASAKI Teryx 750 Sport 2010
    SUZUKI LT-4WD QuadRunner 250 4x4 1987 - 1998
    SUZUKI LT-A450X KingQuad AXi 4x4 2007 - 2010
    SUZUKI LT-A500F QuadMaster 4x4 Automatic 2000 - 2001
    SUZUKI LT-A500F Vinson 500 4x4 Automatic 2002 - 2007
    SUZUKI LT-A500F Vinson LTD 2005 - 2007
    SUZUKI LT-A500X KingQuad AXi 2011 - 2023
    SUZUKI LT-A500XP KingQuad AXi EPS 2009 - 2023
    SUZUKI LT-A500XPZ KingQuad AXi SE EPS 2009 - 2019
    SUZUKI LT-A500XPZ KingQuad AXi SE+ EPS 2020 - 2023
    SUZUKI LT-A700X KingQuad 4x4 2005 - 2007
    SUZUKI LT-A750X KingQuad AXi 2008 - 2023
    SUZUKI LT-A750XP KingQuad AXi EPS 2009 - 2023
    SUZUKI LT-A750XPZ KingQuad AXI SE EPS 2009 - 2018
    SUZUKI LT-A750XPZ KingQuad AXi SE+ EPS 2019 - 2023
    SUZUKI LT-F250F QuadRunner 4x4 1999 - 2002
    SUZUKI LT-F300F KingQuad 4x4 1999 - 2004
    SUZUKI LT-F4WDX KingQuad 300 4x4 1991 - 1998
    SUZUKI LT-F500F QuadRunner 4X4 1998 - 2002
    SUZUKI LT-F500F Vinson 500 4x4 2003 - 2007
    SUZUKI LT-F500F Vinson 500 LTD 4x4 2007
