MTX AUDIO Audio System with 5 speakers Polaris – 5 – 400 W

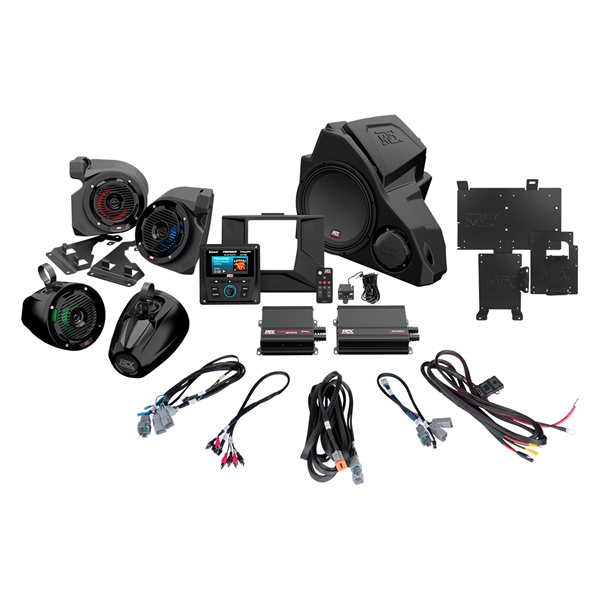

The RZR-14-THUNDER5 audio kit is a complete plug and play 5-speaker audio system designed for the Polaris RZR platform. This kit fits all models that DO NOT have an installed RideCommand system*,**. The heart of this system is the MTX AWMC3 media receiver that mounts in the lower center pocket using the included custom dash kit. The package includes a set of the RZR-14-FS front speaker pods and a pair of MUD65PL speaker cans both featuring integrated RGB lighting and the RZR-14-SW subwoofer enclosure. Connections are made via integrated quick connect harnesses designed for use with the included MUD100.4 4-channel amplifier and MUD600-1 monoblock amplifier.

AWMC3 Media receiver :

• 3″ Full Color TFT Display
• SiriusXM Radio Ready**
• AM / FM / WB Tuner
• Bluetooth Audio Streaming
• Internal Power Amplifier
• Weather Resistant (IP66)
• 2 Sets of Preouts (Front / Rear)
• Selectable EQ
• Backlit Control Buttons
• **SiriusXM antenna/receiver and external AM/FM antenna not included.

RZR-14-FS Speakers :

• All-Weather Construction with UV Inhibitor
• Custom Fit for RZR Kick Panel
• No Cutting or Drilling Required
• 6.5″ Coaxial Speaker
• 50-Watt RMS Power
• Integrated RGB Lighting
• Custom Quick Mount Bracket with POD-LOC Technology for Easy Installation

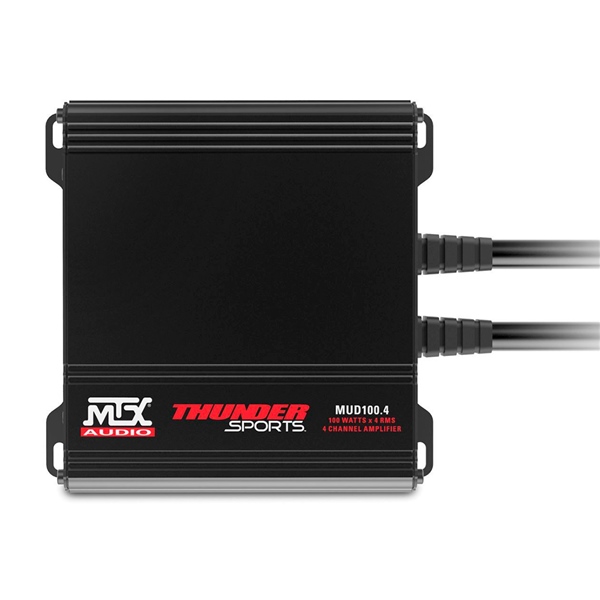

MUD100-4 Amplifier :

• Compact Design Enables Installation Anywhere
• Conformal Coated Printed Circuit Board that Resists Moisture
• Fixed Crossovers
• High and Low Level Inputs
• 400-Watts RMS Power

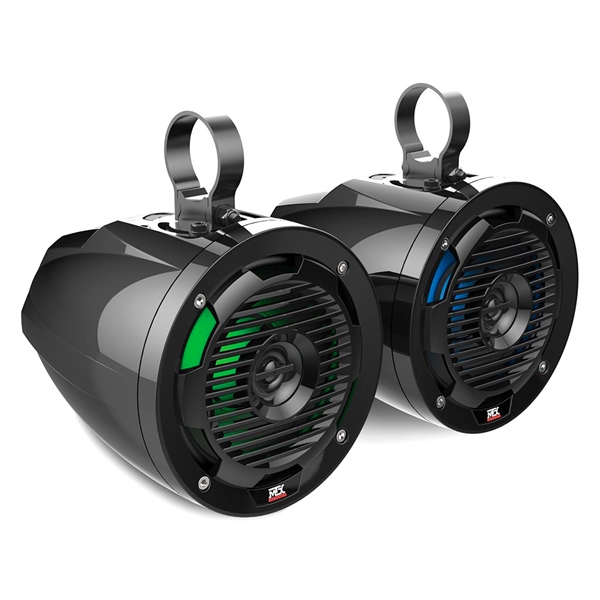

MUD65PL Speaker Cans :

• Weather Resistant 6.5″ Speaker Pods
• Fits Bars with Diameters of 1.5″, 1.75″, and 2″
• Internal Crossover Network
• ABS Impact Resistant Grille with UV Inhibitor
• Integrated RGB Lighting

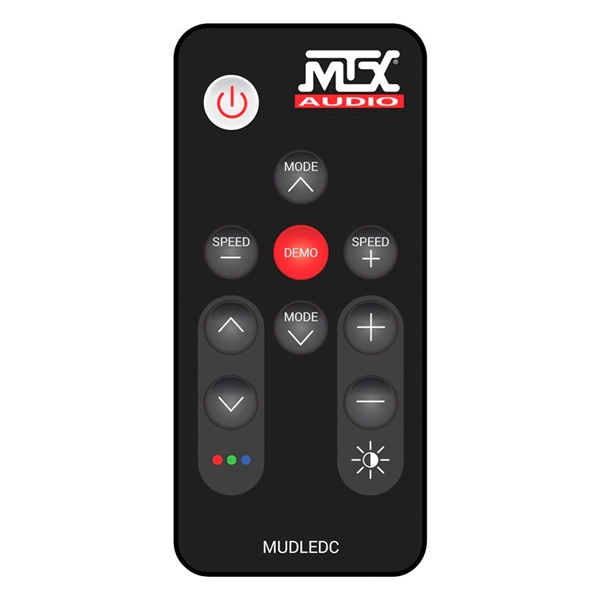

• Optional Remote Control and Wiring Harness Available for Custom Color Creation (MUDLEDC)

MUD600.1 Monoblock Amplifier :

• High Efficiency Class D Topology
• Compact Design Enables Installation Anywhere
• Conformal Coated Printed Circuit Board that Resists Moisture
• Fixed Crossovers
• High and Low Level Inputs
• 600-Watts RMS Power

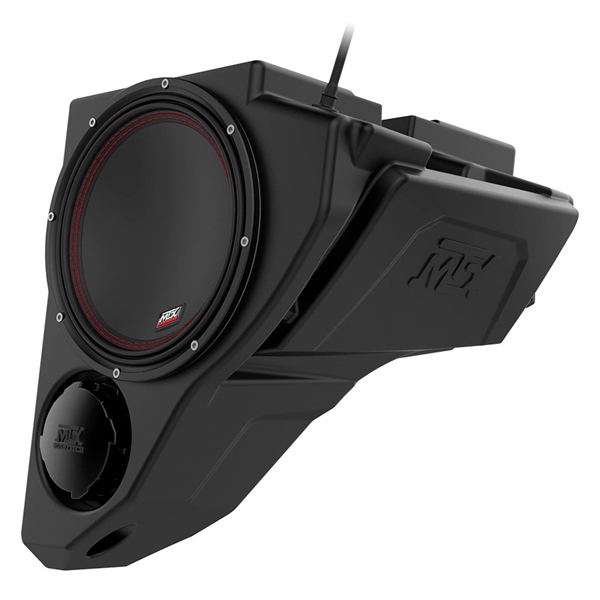

RZR-14-SW Subwoofer Enclosure :

• 10″ Custom Fit Subwoofer Enclosure
• 400-Watt RMS Power
• Sealed or Ported Functionality
• QuIPS (Quick Install Port Seal) Technology
• Mounts Behind Dashboard on Select RZR Models

Plug and Play connections :

The RZR-14-THUNDER5 includes all the wiring required to connect each component. All wiring is ruggedly designed to endure the harsh environments RZRs often find themselves in. All wires are terminated with the appropriate plug for the component being connected, making installation easy.
