RAM MOUNT Diamond Base Mount

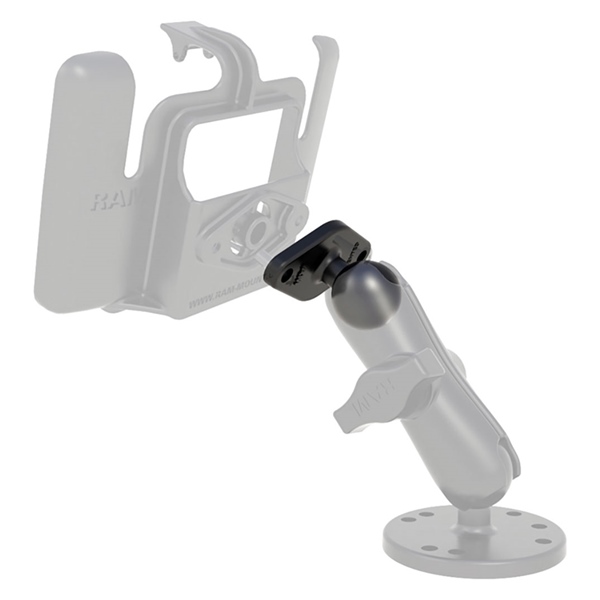

The RAM-B-238 consists of a 1″ diameter rubber ball connected at right angles to a 2.43″ x 1.31″ diamond base. The base has two holes 1.912″ from center to center, matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles.

• Material: Powder Coated Marine Grade Aluminum
• Ball Size: 1″ Rubber Ball “B” Size

To obtain full support for your device:

• Step 1: Choose your ball carrier that suits your use. (handlebar, flat surface, etc…)
• Step 2: Select your sleeve for mounting ball. (Short, Standard, Standard )
• Step 3: Choose your medium suitable for your device.

Note:
The “U” in the part number reflects product packaged in poly bag.
