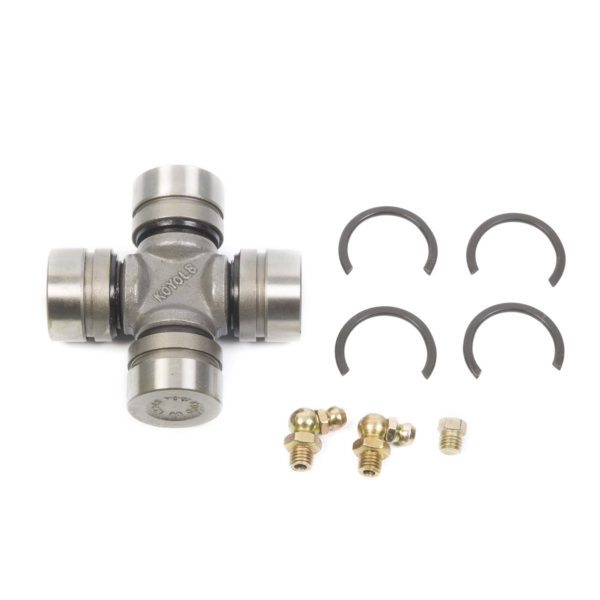

All Balls Universal Joint

Original price was: $47.99.Current price is: $45.33.

6% Off
All Balls Universal Joint
All Balls Universal Joint - Image 2

All Balls Universal Joint

UNIVERSAL JOINT UTV KAWA ALLBALLS

Original price was: $47.99.Current price is: $45.33.

10 in stock


This product is available at $43.06 for first purchase, please register/login here

SKU: 207355 Categories: , ,
  • U Joints are cold forged from SCM-415 steel, precision ground journals are case hardened to HRC58-61
  • U Joints are pre greased with hi-temp Lithium Complex 3 grease.
  • Bearing cups feature a Quad lip seal to keep contamination out and grease in.
  • Centrally located grease zerk and grease channels in bearing cup evenly distribute grease.
  • Kits include cap plug to eliminate grease zerk for low clearance applications.
  • Honda Yoke assemblies have upgraded cross diameters from 17mm to 19mm.
  • Honda yoke assemblies feature stainless steel clamps and hi quality neoprene rubber boots for long life and abrasion resistance.

Notes for utility Models:

  • A) Six Wheel vehicules middle drive shaft use the same U-Joints as rear drive Shaft (Location 4 & 5)
  • B) Middle axle use the same U-Joints as rear axle (Location 6 & 7)
  • C) Utility vehicules with middle U-Joints on front drive shaft use same U-Joints as front (Location 2)

    • In order to know the exact position of every joint made for your ATV model, refer to the charter in Kimpex ATV & UTV online catalog at the Axles & Universal CV Boots section.

    Additional information

    Weight0.7499 lbs
    Dimensions5.0000 × 5.0000 × 2.0000 in
    Brand

    Tip length

    0.984"

    Total length

    1.772"

    Zerk

    Yes

    Snap ring included

    Yes

    Position

    Varies by model

    Model number

    19-1009

    Reviews

    There are no reviews yet.

    Be the first to review “All Balls Universal Joint”
    Make Model Year
    KAWASAKI KRT800JNF Teryx4 (US) 2022
    KAWASAKI Mule 2500 1994 - 2000
    KAWASAKI Mule 2510 4x4 1993 - 2000
    KAWASAKI Mule 2510 Diesel 2000 - 2002
    KAWASAKI Mule 2520 1993 - 2000
    KAWASAKI Mule 3000 2001 - 2008
    KAWASAKI Mule 3010 4x4 2001 - 2008
    KAWASAKI Mule 3010 Diesel 4x4 2003 - 2007
    KAWASAKI Mule 3010 Diesel EPS 4x4 2008
    KAWASAKI Mule 3010 Diesel Trans 4x4 2007 - 2008
    KAWASAKI Mule 3010 Trans 4x4 2005 - 2008
    KAWASAKI Mule 3020 2001 - 2003
    KAWASAKI Mule 4000 2x4 2009 - 2023
    KAWASAKI Mule 4000 Trans 2x4 2018 - 2021
    KAWASAKI Mule 4010 4x4 2009 - 2023
    KAWASAKI Mule 4010 Diesel 4x4 2009 - 2013
    KAWASAKI Mule 4010 Diesel Trans 4x4 2009 - 2013
    KAWASAKI Mule 4010 Trans 4x4 2009 - 2023
    KAWASAKI Mule Pro FX 2016 - 2022
    KAWASAKI Mule Pro FX EPS 2016 - 2022
    KAWASAKI Mule Pro FX EPS LE 2016 - 2022
    KAWASAKI Mule Pro FXR EPS 2018 - 2023
    KAWASAKI Mule Pro FXT 2015 - 2021
    KAWASAKI Mule Pro FXT EPS 2015 - 2021
    KAWASAKI Mule Pro FXT EPS LE 2015 - 2021
    KAWASAKI Mule Pro FXT EPS Ranch Edition 2016 - 2022
    KAWASAKI Mule Pro MX EPS LE 2019 - 2020
    KAWASAKI Mule Pro-DX Diesel 2016 - 2017
    KAWASAKI Mule Pro-DX EPS Diesel 2016 - 2023
    KAWASAKI Mule Pro-DXT Diesel 2016 - 2022
    KAWASAKI Mule Pro-DXT EPS Diesel 2016 - 2023
    KAWASAKI Mule Pro-DXT EPS Diesel Fleet Edition 2021
    KAWASAKI Mule Pro-DXT EPS LE Diesel 2016 - 2017
    KAWASAKI Mule Pro-FXT 2022 - 2023
    KAWASAKI Teryx 800 EPS 2014 - 2023
    KAWASAKI Teryx 800 LE EPS 2014 - 2021
    KAWASAKI Teryx KRX 1000 2020 - 2023
    KAWASAKI Teryx KRX 1000 eS 2023
    KAWASAKI Teryx KRX 1000 Lifted Edition 2021 - 2023
    KAWASAKI Teryx KRX 1000 SE 2021 - 2023
    KAWASAKI Teryx KRX4 1000 eS SE 2023
    KAWASAKI Teryx KRX4 1000 SE 2023
    KAWASAKI Teryx S 800 LE 2021 - 2023
    KAWASAKI Teryx4 750 2012 - 2013
    KAWASAKI Teryx4 750 EPS 2012 - 2013
    KAWASAKI Teryx4 800 EPS 2014 - 2023
    KAWASAKI Teryx4 800 LE EPS 2014 - 2021
    KAWASAKI Teryx4 S 800 EPS (US) 2021
    KAWASAKI Teryx4 S 800 SE EPS 2023
