Kimpex HD Stator, Flywheel, Puller, AC/DC Ignition Conversion Kit Fits Polaris – 345072
Original price was: $841.99.$757.79Current price is: $757.79.
Kimpex HD Stator, Flywheel, Puller, AC/DC Ignition Conversion Kit Fits Polaris – 345072
STATOR KIT/FLYWHEEL/PULLER/CONVERSION
Original price was: $841.99.$757.79Current price is: $757.79.
1 in stock
This product is available at $719.90 for first purchase, please register/login here
This kit includes: a Generator Stator, a Flywheel, a Puller, an AC to DC Ignition Conversion Kit.

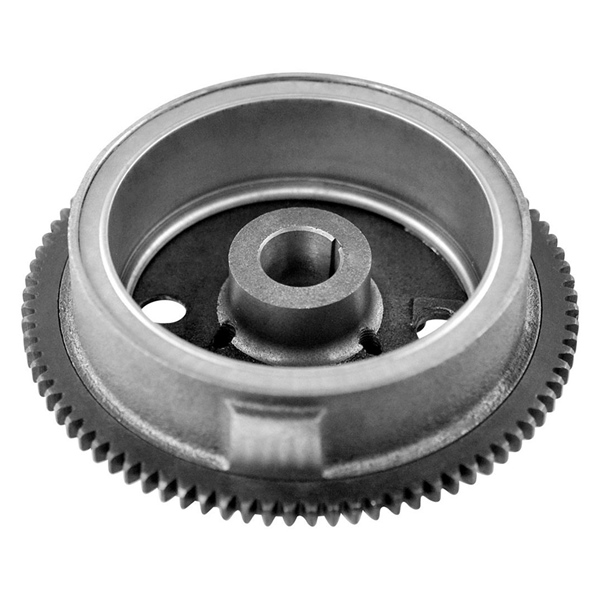

Flywheel
Dimensions:
Flywheel Pullerr
SF-900-006548 / SF-900-006548 (345070 / 345072) – Polaris Sportsman Big Boss Scrambler
Generator Stator
Dimensions :
Other specifications :
Number of wires : 7
Number of plugs : 9 / 6
Number of pins : 12 / 8
Wire to wire resistance :
Alternator : Yellow/Red to Yellow = 0.4 ohms +/-20%
Pickup : White/Red to Red = 115 ohms +/-20%
Source : Black to Red = 18 ohms +/-20%
SF-900-006547 (345069) – Polaris Sportsman Scrambler Magnum
Stator
Dimensions :
Other specifications :
Number of wires : 9
Number of plugs : 7
Number of pins : 10
Wire to wire resistance:
Alternator: Yellow to Yellow/Red = 0.6 ohms +/-20%
Pickup: White to White/Red = 100 ohms =+/-20%
Source Green to Red/Black = 450 ohms =+/-20%
Source 2: Green to Black = 3.8 ohms =+/-20%
Additional information
| Brand | |
|---|---|
| Compatible brand | |
| Internal diameter mm | 48 |
| External diameter mm | 115 |
| Thickness mm | 20 |
| Number of wires | 7 |
| Number of connectors | 6 |
| Number of terminals | 8 |
| Notes | |
| Number |
