Kimpex HD Stator Fits Honda – 225696

Original price was: $280.99.Current price is: $252.89.

10% Off

Kimpex HD Stator Fits Honda – 225696

Name: Kimpex HD Stator Fits Honda - 225696
Brand: KimpexHD
SKU: 225696
Availability: InStock

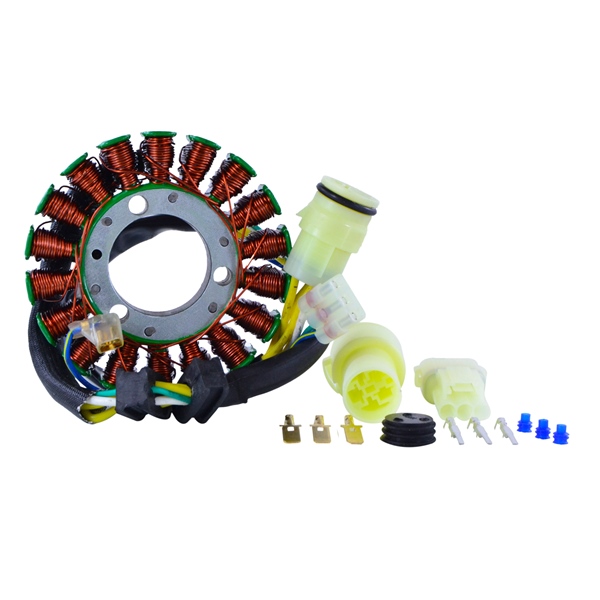

GENERAT STATOR MITSUBA 18POLE HON KIMPEX

Original price was: $280.99.Current price is: $252.89.

6 in stock

This product is available at $240.25 for first purchase, please register/login here

SKU: 225696 Categories: ATV, Electrical, Stators

Direct replacement to your original unit
Plug-and-play, direct fit, easy installation
Highest grade lamination materials
Highest grade copper windings, resistant to 200 degrees Celsius
Connector included
Rubber grommet included
All products shipped are tested

Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Additional information

Weight	1.7001 lbs
Dimensions	6.2500 × 5.0000 × 2.3500 in
Brand	KimpexHD
Compatible brand	Fits Honda
Internal diameter mm	35
External diameter mm	57
Thickness mm	16
Number of wires	6
Number of connectors	2
Number of terminals	6
Notes	The opposite connector is include (main harness side)
Number	225696
